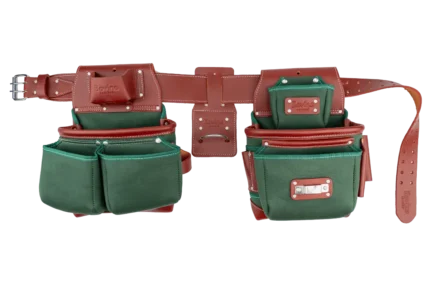

A framer tool belt system is a specialized setup designed to help framers (carpenters who construct the frames of buildings) carry their tools efficiently while working. Here are the typical specifications and features you would expect in a high-quality framer tool belt system:
Components of the Tool Belt System
Materials
Leather: High durability, traditional look, and feel; oil-tanned for water resistance.
Weight: The belt should be lightweight enough for comfort but sturdy enough to hold tools.
Pockets and Compartments
Number and Size: Includes multiple pockets and tool holders (20 in total) of various sizes to accommodate different tools (e.g., hammers, screwdrivers, nails, tape measures).
Specialized Pockets: Specific pockets for certain tools like a hammer loop or tape measure clip.
Belt
Adjustability: Adjustable to fit a range of waist sizes up to 53.5 inches.
Width: Generally around 2 to 3 inches wide for even weight distribution.
Pockets and Compartments
Main Pouches: Large pouches for carrying nails, screws, and other bulk items.
Tool Pockets: Various sizes to accommodate hammers, pliers, tape measures, levels, and other common tools.
Nail Bags: Often detachable and designed specifically for easy access to nails and screws.
Specialty Pockets: Dedicated compartments for items like speed squares, utility knives, and pencils.
Fasteners and Attachments
Hammer Holder: Strong loops to hold hammers securely.
Tool Holders: Clips and holders for specific tools like screwdrivers, pliers, and utility knives.
Durability Features
Riveted Seams: Reinforced seams with rivets for extra strength.
Double Stitching: Additional stitching to prevent wear and tear.
Water Resistance: Treated materials to withstand moisture and exposure to the elements.
Comfort Features
Breathable Material: For better ventilation during long working hours.
Contoured Design: Belts designed to fit the natural curve of the body.
Tool Belt System Specifications
Belt
Length: 53.5 inches, accommodating a variety of body sizes.
Waist Size: Measures 29.25 inches in length and 2.75 inches in width, providing a comfortable fit.
Adjustable Portion: Spanning 26.75 inches in length and 2 inches in width, with 21 single adjustable holes (6.5mm each) for a customizable fit.
Pouch 1
- Pouch Size: 14” x 12”
- Large Tool Pocket: 10.5” x 7.5”
- Inner Tool Pockets: 4
- Screwdriver Holders: 2
- Hammer Loop: 1
- Tool Holders: 3
- Outer Tool Holder: 1
- Outer Pocket: 4” x 2”
Hammer Holder
Hammer Holder Size: 8.5” x 4”
Pouch 2
- Pouch Size: 14” x 12”
- Pouch Top Upper Tool Pocket: 6.75” x 4.75”
- Inner Large Tool Pocket: 10.5” x 7.5”
- Triangle Scale Holder: 6.5” x 7”
- Outer Tool Pocket: 8.75” x 6.5”
- Tool Holders: 2
- Screwdriver Holders: 2
Layout Example
Belt Center
Hammer Holder
Right Side
Pouch 1
Pouch Size: 14” x 12”
Large Tool Pocket: 10.5” x 7.5”
Inner Tool Pockets: 4
Screwdriver Holders: 2
Hammer Loop: 1
Tool Holders: 3
Outer Tool Holder: 1
Outer Pocket: 4” x 2”
Left Side
Pouch 2
Pouch Size: 14” x 12”
Pouch Top Upper Tool Pocket: 6.75” x 4.75”
Inner Large Tool Pocket: 10.5” x 7.5”
Triangle Scale Holder: 6.5” x 7”
Outer Tool Pocket: 8.75” x 6.5”
Tool Holders: 2
Screwdriver Holders: 2
When choosing a framer tool belt system, consider your specific needs, the type of projects you undertake, and your comfort preferences. Investing in a high-quality tool belt can significantly improve efficiency and reduce physical strain during framing work.
